Form and Function

ARC 257- Project 1

The objective of this project was to create a design solution using form and function. Students were tasked with redesigning an existing bridge to allow a clearance of 30' x 40' for water traffic flow. The movement of the bridge was to be inspired by common household items.

Span Prototypes

Name: Chaotianmen Bridge
Location: Chongqing, China
Type: Cantilever Bridge
Screenshot 2026-03-22 184841.png
Name: The Forth Bridge
Location: Edinburgh, UK
Type: Cantilever Bridge
Screenshot 2026-03-22 185451.png
Name: Russky Bridge
Location: Vladivostok, Russia
Type: Cable-Stayed Bridge

Movement Analogies

The design process started with common household items. The requirements of said items were that they must have at least two hinges. From there, three of the objects with the most potential were chosen to be modeled. This portion of the project was implemented to help students understand the mechanics of each object.

Screenshot 2026-03-19 164423.png
Screenshot 2026-03-19 170032.png
Object #1: Aviation Snips
3D Model
Simplified Movement Diagrams
Object #2: Ice Cream Scooper
Simplified Movement Diagrams
Screenshot 2026-03-19 170828.png
Screenshot 2026-03-19 170828.png
Screenshot 2026-03-19 170828.png
Screenshot 2026-03-19 170828.png
Screenshot 2026-03-19 170849.png
Screenshot 2026-03-19 164540.png
3D Model
Screenshot 2026-03-19 164610.png
Screenshot 2026-03-19 171125.png
Screenshot 2026-03-19 171125.png
Screenshot 2026-03-19 171125.png
Screenshot 2026-03-19 171125.png
Object #3: Eyelash Curler
Simplified Movement Diagrams
3D Model

3x3 Prototype Table

This table combines the chosen span prototypes with the object movement diagrams, creating a total of 9 possible designs.

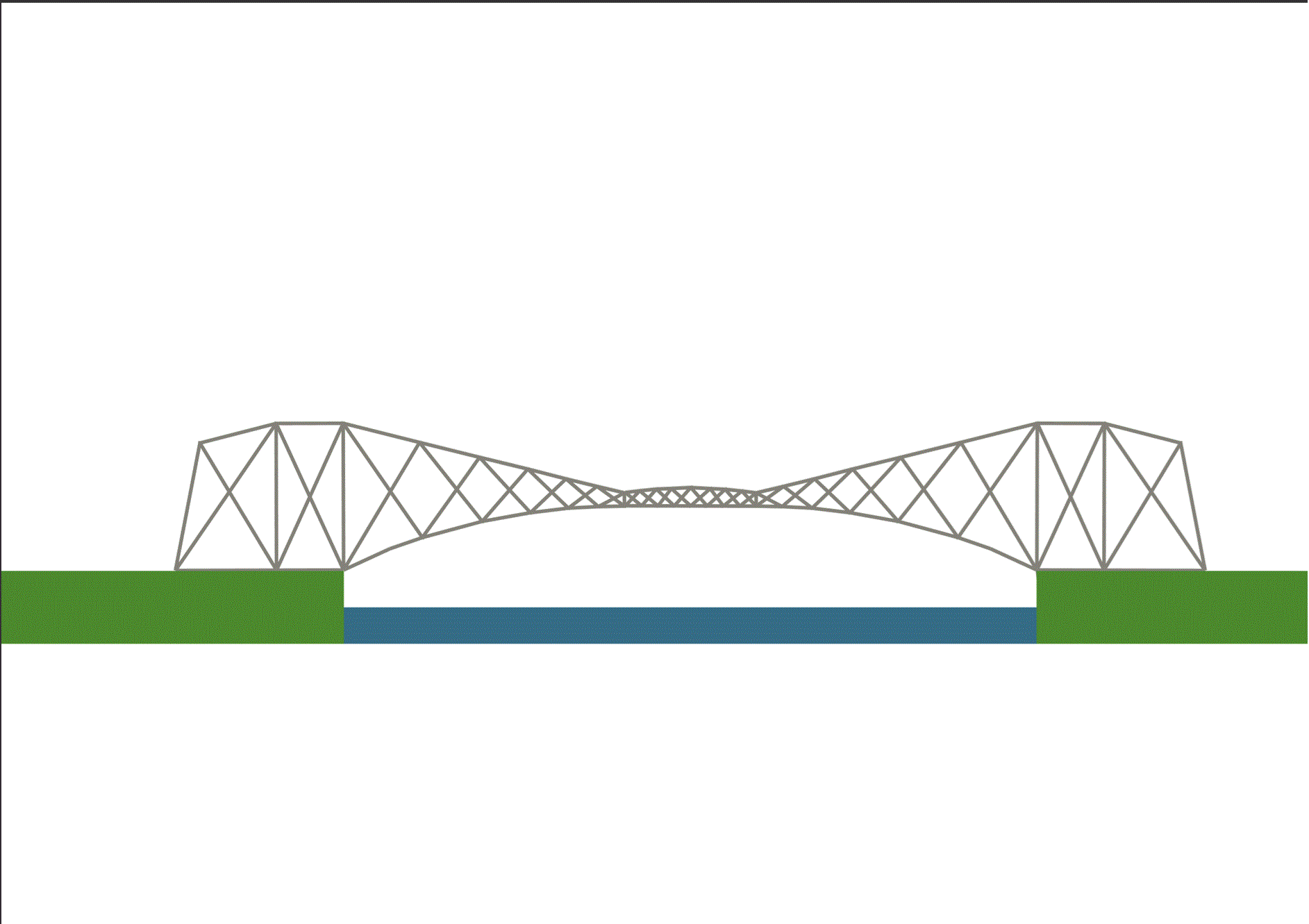

Selected Prototype

Screenshot 2026-03-19 171508.png

3D Design Process

Screenshot 2026-03-23 010057.png

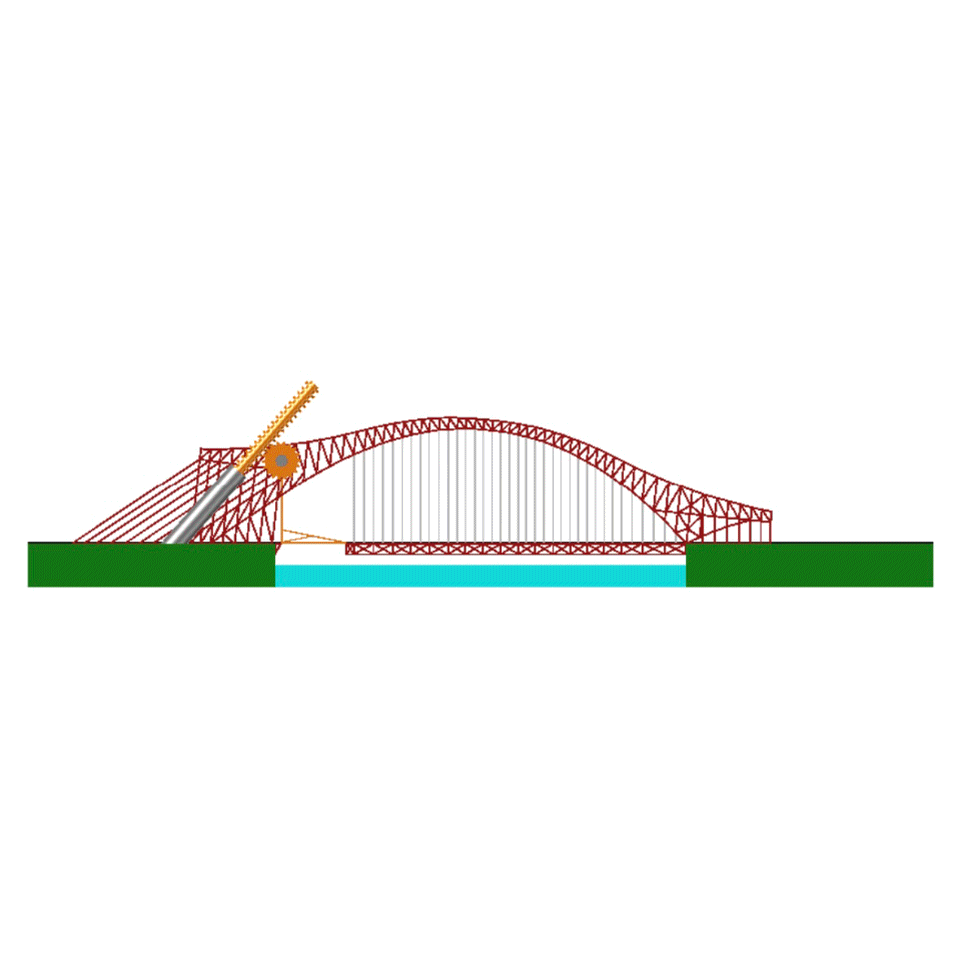

Mechanical Movement

The cage splits the roadbed in half and both sides rotate upward. The cage is attached to a rod and gear, which is rotated by a moving track. The track is able to move up and down because its connected to a pulley system with rotating arms.

Views

Screenshot 2026-03-22 232351.png
Northwest View
Screenshot 2026-03-22 232451.png
Northeast View
Screenshot 2026-03-22 232519.png
Southeast View
Screenshot 2026-03-22 232543.png
Southwest View

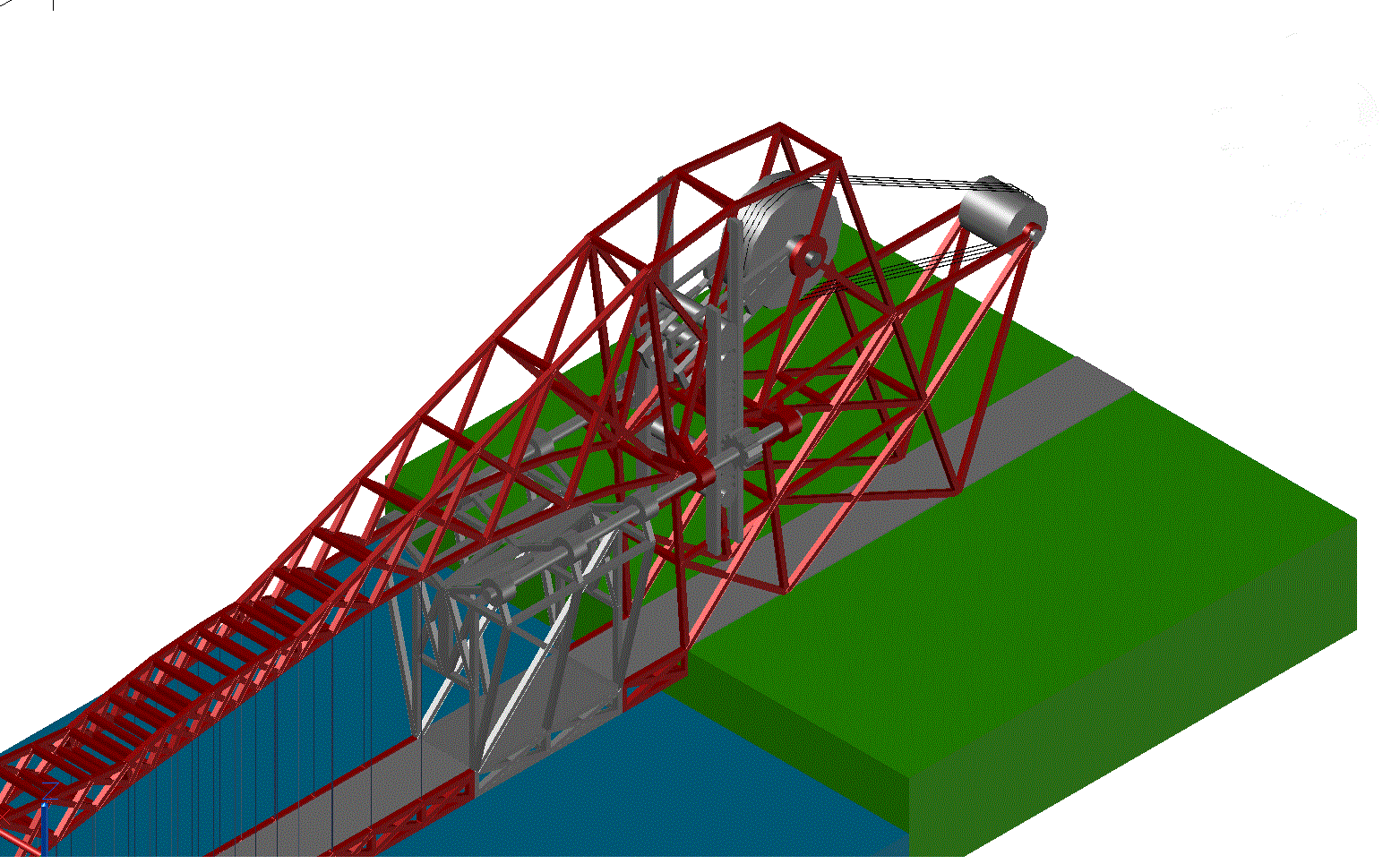

Rotating View of Mechanism
Rotating View of Bridge

Renderings


Final Design

Screenshot 2026-03-23 021731.png
