Contextual Fit

ARC 257- Project 2

The objective of this project was to design an addition to the famous Smith House, originally designed by architect Richard Meier. The new design however, must align with Meier's design elements and current structure, as well as fit on the existing site.

Narrative

The Roy family has recently purchased and moved into the famous Smith House, located on the coast of Connecticut overlooking the Long Island Sound. Their family loves to spend time together, but there just aren’t enough spaces for them in this house. They want to expand the house to fit their preferences while also keeping the original design of the house that they loved in the first place.



The couple has asked for a  a master suite upstairs. Mr. Roy has had some health concerns and would like to have an exercise room in their home.  Mrs. Roy would like a roof garden, since the soil here makes things a little difficult to grow. The children love birds, and they are often seen in this area, so their mother wants to build a family room that they can spend their time in and birdwatch together.


Sorting of Spaces

Roof Garden
Dining Room
Living Room
Deck
Family Room
Bedrooms

Master Bedroom

Kitchen

Exercise room

Bedroom
Master bedroom
Exercise room
Living room

Dining Room

Family Room

Deck

Bedrooms

Exercise room

Roof Garden

Family Room

Living room

Dining room

Kitchen

Public Spaces:
Private Spaces:
Individual
Spaces:
Group Spaces:
Quiet Spaces:
Loud Spaces:

Hierarchy: Family Room

Meta-Idea: Birds

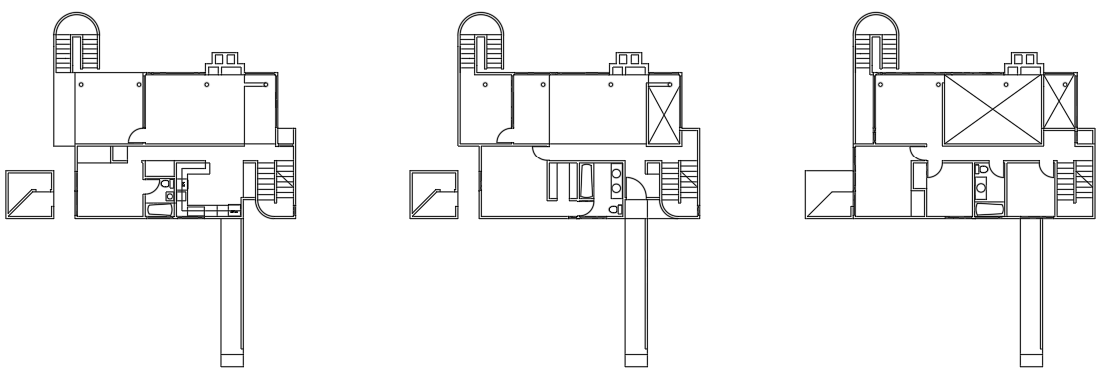

Existing Floor Plans

Lower Level

Entry Level

Upper Level

Screenshot 2026-04-13 212412.png

Contextual Analysis

Screenshot 2026-04-13 233003.png

Conceptual Diagrams

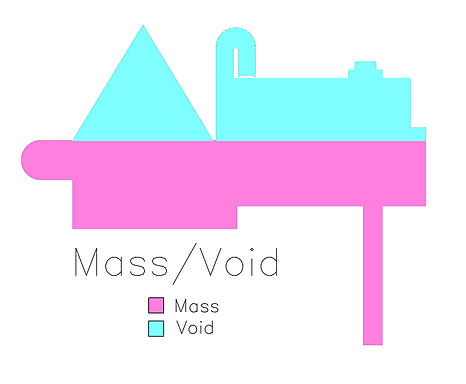

Conceptual Meta-Idea

I have chose to incorporate the triangle shape into my design because i believed it would fit the narrative. The triangle is a simple and workable shape that still shows a clear hierarchy in relation to the existing structure. I also felt that it would symbolize the shape of a bird's body.

Screenshot 2026-04-17 212409.png

Preliminary Designs

Preliminary Design 1

Screenshot 2026-04-18 152947.png
Screenshot 2026-04-18 153035.png
Screenshot 2026-04-18 153233.png
Screenshot 2026-04-18 153308.png

Preliminary Design 2

Preliminary Design 3

Transformation Process


Existing Systems

Screenshot 2026-04-19 105841.png
Screenshot 2026-04-19 105924.png
Screenshot 2026-04-19 110722.png
Screenshot 2026-04-19 110734.png
Screenshot 2026-04-19 110752.png

Bearing Walls

Beams & Girders

Glass Curtain Walls

Stairs

Railings

Final Floor Plans

Lower Level

Lower Level

Entry Level

Entry Level

Upper Level

Upper Level

Final Elevations


Left Elevation

Back Elevation


Right Elevation

Elevation1

Front Elevation

Final Sections

Section2

3D Sections

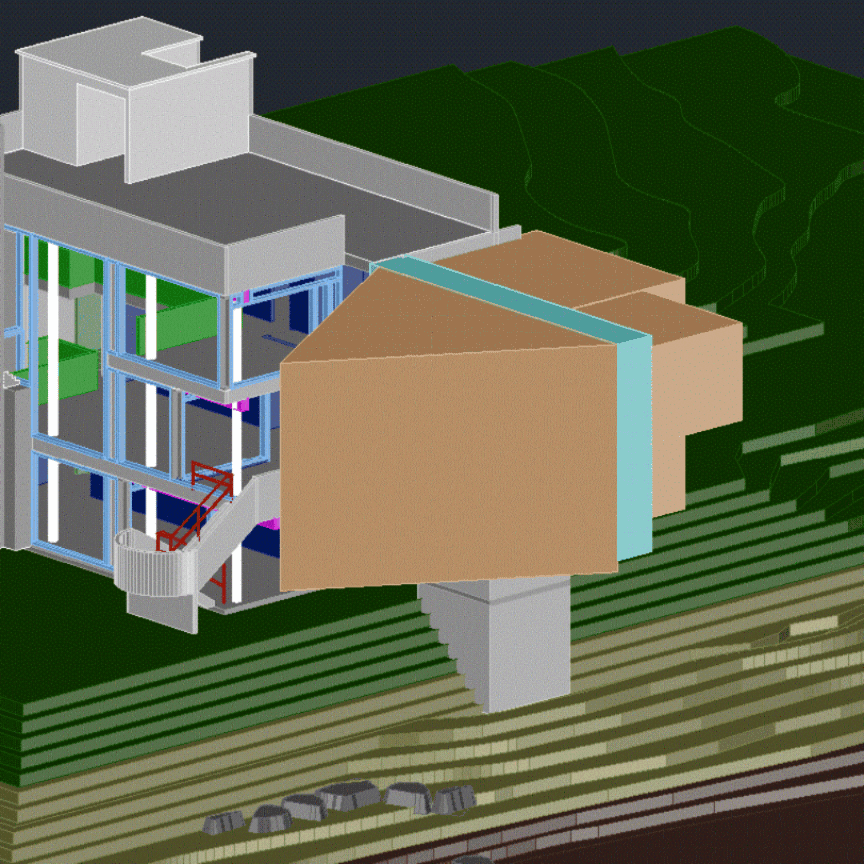

Interior Renders


Final Project Renders

Stylized Blue Bird_edited.png

In Loving Memory of Blu

Charlie&Blu
